High frequency microwave pulses travels along the detecting component (steel rope or rod) and reflects when Reaching the product surface. The time from emission to reception is proportional to the distance between the surface and the reference plane on the instrument.

Feature
TGDL5X equipped with the advanced microprocessor and unique Echo-Discovery echo processing technology can be used in severe ambience.
TGDL5X with extremely low emission power, can be mounted on various metal or nonmetal vessels, harmless towards the environment and human beings.
There are multiple options available in choosing various process connections and detecting component, which enables TGDL5X to be applied in a broad extent of applications, such as high temperature, high pressure, medium with small dielectric constant and etc.

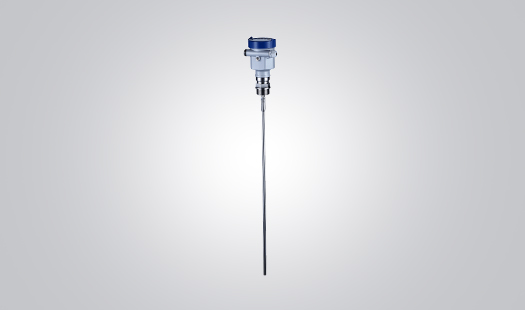

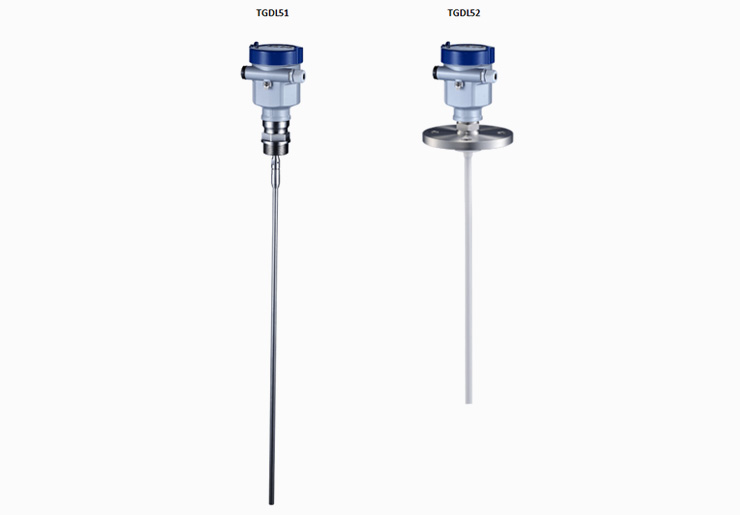

Application	Liquids / Solids, in severe ambience	Liquids / Solids, in severe ambience
Max Measurement Range	Cable: 30m; Rod: 6m	6m
Measurement Accuracy	±10mm	±10mm
Process Connection	G1 1/2A, G2A, 1 1/2NPT	PTFE Flange
Wetted Part Material	SS 316L / PTFE	PTFE
Process Pressure (MPa)	-0.1~4	-0.1~1.6
Process Tempt. (Deg. C)	-40~150	-40~150
Signal Output	(4~20)mA/HART	(4~20)mA/HART
Power Supply	2-wire(DC24V) / 4-wire(DC24V/AC220V)	2-wire(DC24V) / 4-wire(DC24V/AC220V)

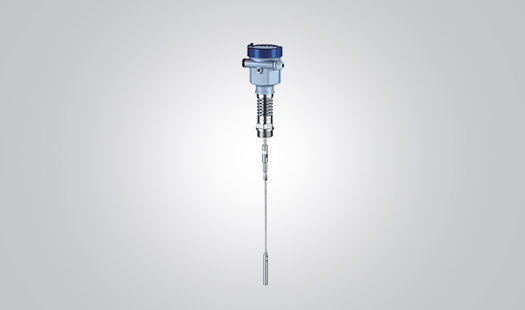

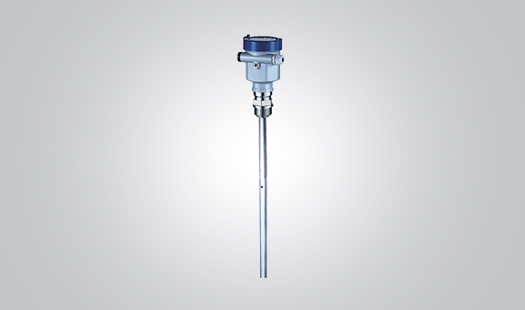

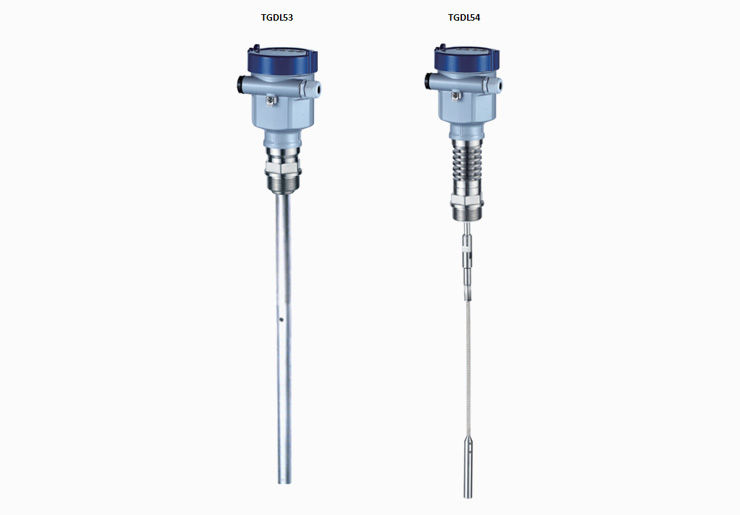

Application	Liquids, especially for ones with small dielectric constant, in severe ambience	Liquids in severe ambience with high temperature / pressure
Max Measurement Range	6m	Cable: 30m / Rod: 6m
Measurement Accuracy	±10mm	±10mm
Process Connection	G1 1/2A, G2A	G1 1/2A, G2A, 1 1/2NPT
Wetted Part Material	SS 316L / PTFE	SS 316L
Process Pressure (MPa)	-0.1~4	-0.1~4
Process Tempt. (Deg. C)	-40~150	-40~200
Signal Output	(4~20)mA/HART	(4~20)mA/HART
Power Supply	2-wire(DC24V) / 4-wire(DC24V/AC220V)	2-wire(DC24V) / 4-wire(DC24V/AC220V)

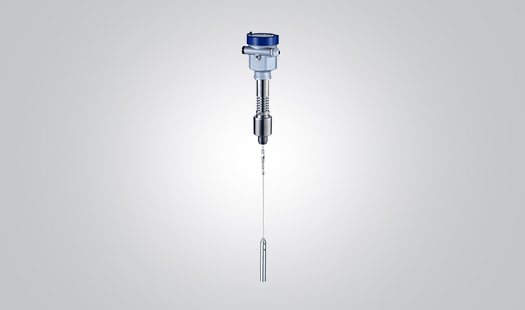

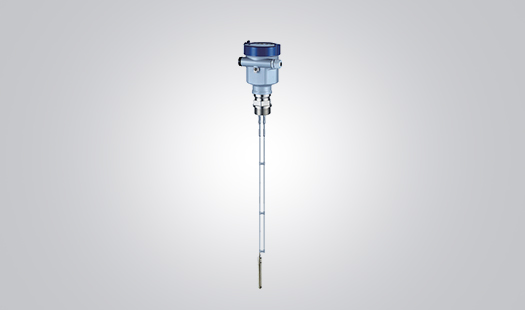

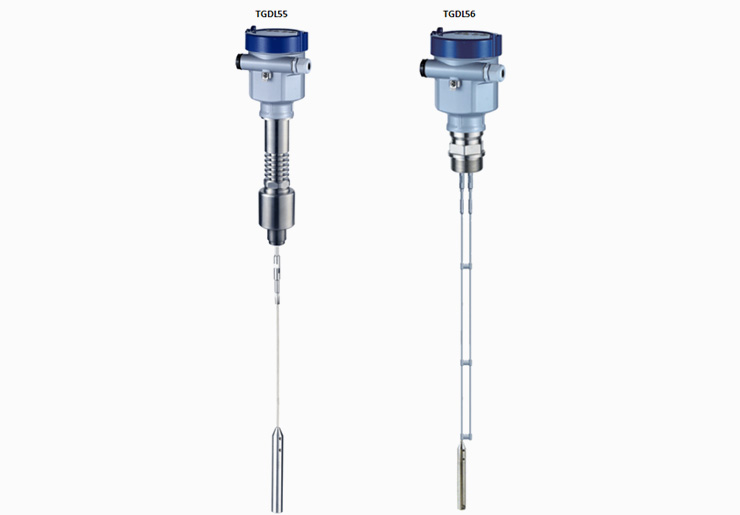

Application	Liquids, especially in severe ambience with very high temperature and pressure	Liquids with small dielectric constant or powder
Max Measurement Range	Cable: 30m / Rod: 6m	Cable: 30m / Rod: 6m
Measurement Accuracy	±10mm	±10mm
Process Connection	G1 1/2A, G2A, 1 1/2NPT	G1 1/2A, G2A, 1 1/2NPT
Wetted Part Material	SS 316L	SS 316L / PTFE
Process Pressure (MPa)	Vacuum~40	-0.1~4
Process Tempt. (Deg. C)	-200~400	-40~150
Signal Output	(4~20)mA/HART	(4~20)mA/HART
Power Supply	2-wire(DC24V) / 4-wire(DC24V/AC220V)	2-wire(DC24V) / 4-wire(DC24V/AC220V)
