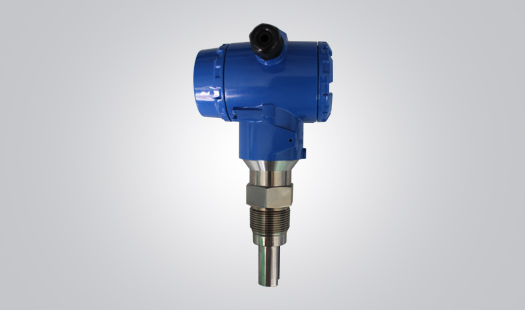

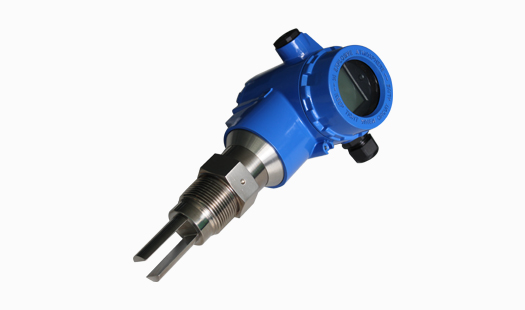

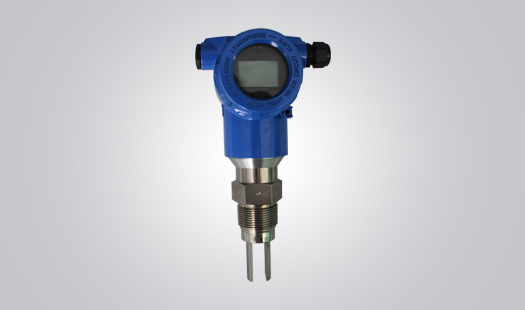

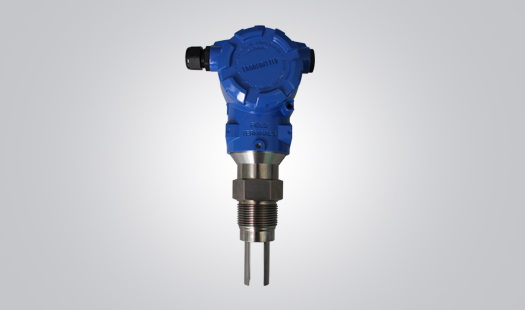

Insertion Density Meter

Direct Insertion Density Meter, expert in Liquids / Slurry Density Measurement
Download Datasheet Send Inquiry
  • Overview
  • Brief Tech-Parameter
TDW Series Tuning Fork Density Meter is an in-line density meter. It adopts the advanced technology of vibration to deliver the accurate and stable performance on liquid density measurement.



Typical Industries TDW Series density meter served include petroleum chemical industry, wine industry, food industry, pharmaceutical industry and mineral processing, (e.g. slurry, tailings, pulp, etc.). The tuning fork density meters are convenient for pipe-mounting, tank-mounting.



Compared to other types of density meters (coriolis flow meter, ultrasonic density meter, gamma-ray density meter), the tuning fork density meters are cost-saving, easy-installation and stable in performance for normal application fields.

\






Typical Application Fields



Sugar Industry & Wine Making Industry Juicing; Syrup; Grape Juice; Ethanol
Dairy Industry Condensed Milk; Milk Sugar; Cheese; Yogurt
Construction Industry; Mining Industry Size Mixing; Coal Washing; Potash; Brine; Phosphate; Limestone; Bauxite
Oil Refinery Lubricating Oil; Aromatic; Fuel Oil; Vegetable Oil
Food Processing Tomato Juice; Fruit Juice; Vegetable Oil; Starch Milk; Jam
Chemical Industry Carbamide; Detergent; Polymer; Ethylene Glycol; Sodium Chloride; Caustic Soda
Petrochemical Industry LPG; Kerosene; Lubricating Oil
Environmental Protection Desulfurization; Denitration




Full Scale 0~3 g/cm3
Set Range 0~3 g/cm3
Accuracy ±1 kg/m3
Repeatability ±0.1 kg/m3
Working Temp. -20~150 Deg. C
Pressure Rating 10MPa ~ 20MPa
Viscosity Range 0~20000cP
Temperature Effect Less than 0.1 kg/m3/0C (After Calibration)
Process Connection ANSI 150 ~ 1500 RF
Protection Class IP67
Impact from Pressure Negligible
Built-in Temperature Sensor PT100
Wetted Parts Stainless Steel 316L/ HC Hastelloy
Tine Finish Standard , PFA Coated, or Electro-Polished
Power Supply 24VDC,≥500 mA
Analog Output 4 -20 mA, 0-100%, HART
Density Accuracy - (20 Deg. C) ± 0.1% or ± 0.05% FS of indicated figures
Repeatability - (-40 ~85 Deg. C) ± 0.05% F.S.
Electric Enclosure Aluminum Alloy
Ex-Proof Exd IIC T6 Gb
