TGV3 Series 3-Way Control Valves
Diverting / Mixing 3-way Control Valve- Overview

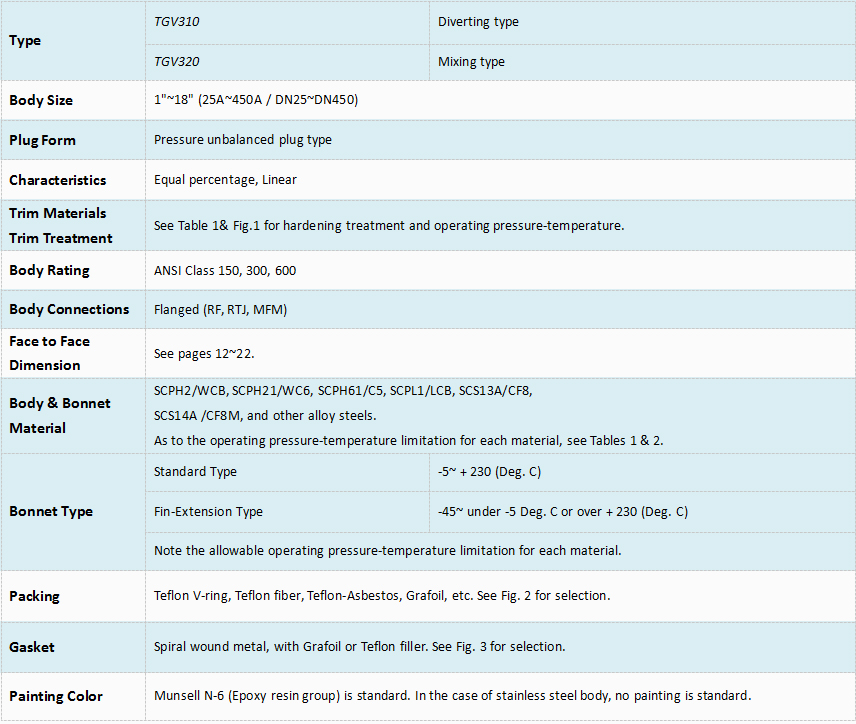

- Brief Tech-Parameter
Mixing control valve is mainly used for mixing two fluids into a third fluid. Diverting control valve is mainly used for diverting one fluid into two fluids.
With control of the 3-way valve, when one circulation area between the plug and the valve seat gasket increases, the other one would decrease. The series can replace two mutual switch valves, and they can be applied to the control of liquid, gas, steam etc.
Performance Characteristics

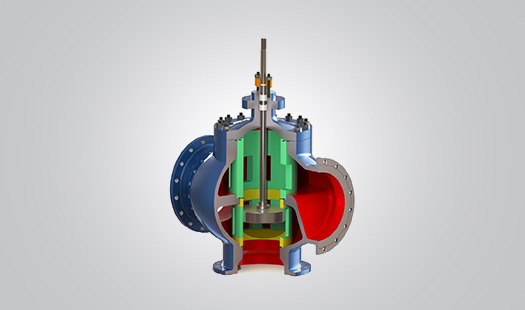

TGV310/320 is a cage guided 3-way valve, blockage of plug and cage can be reduced due to its simple structure. This series can be applied to high temperature and high pressure occasions.
Un-balanced plug structure, mainly used for control of 3-way diverting or mixing occasions, cannot take too much close pressure difference
With control of the 3-way valve, when one circulation area between the plug and the valve seat gasket increases, the other one would decrease. The series can replace two mutual switch valves, and they can be applied to the control of liquid, gas, steam etc.
Performance Characteristics
TGV310/320 is a cage guided 3-way valve, blockage of plug and cage can be reduced due to its simple structure. This series can be applied to high temperature and high pressure occasions.
Un-balanced plug structure, mainly used for control of 3-way diverting or mixing occasions, cannot take too much close pressure difference
Leakage would be increased when the fluids flowing through the 3-way valve are with different temperature, because the degree of expansion of valve plug and seat are different. So normally, the two fluid temperature differences should not be more than 150 Deg. C
Product Advantage
1. Product costs and installation space can be reduced when using this series for fluid proportion control system, because it covers air-open and air-close control valves.
2. This series is suitable for diverting one fluid flow into two flows or mixing two fluid flows into one flow through a three-way valve.
3. The only difference between TGV310 and TGV320 is the flow direction, 3-way diverting valve TGV310 can be used as TGV320 by changing the flow direction.
General Information
For details, please kindly contact Tosilon.
For reference, please kindly download the “Datasheet”
For details, please kindly contact Tosilon.
For reference, please kindly download the “Datasheet”
