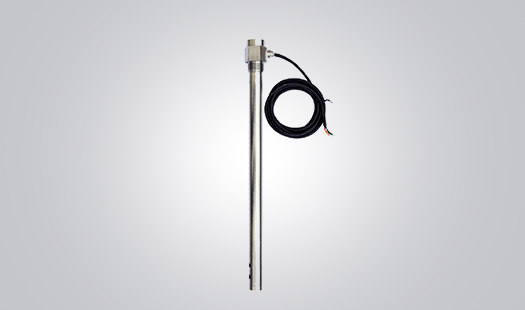

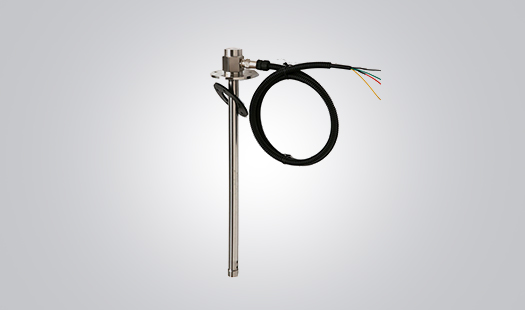

TOS-606 series level transmitter is special designed for measuring level of all kinds of oil such as gasoline, diesel, hydraulic oil, etc. It applied in storage tank in rail, lorry, fuel tanks in all kinds of vehicles. It is also used to measure non-conductive and conductive media level with adverse working condition such as strong corrosion, high temperature, high toxic, explosion etc.

Based on radio frequency capacitance principle, adopted temography and dynamic analysis technology, the TOS-60 series Level Transmitter can calibrate automatically in different media without calibrating if the media is changed. It is able to get high accuracy 0.2% and have little temperature drift because of its temperature compensation.

• 2- wires Electric Current Loop \
• Measuring System is isolated from the current loop
• Check media dielectric constant and temperature change with tomography technology and calibrate automatically when media changed
• High Accuracy and Stability.
