Intrinsically Safe Barriers
TÜV Rheinlan Certified- Overview
- Brief Tech-Parameter

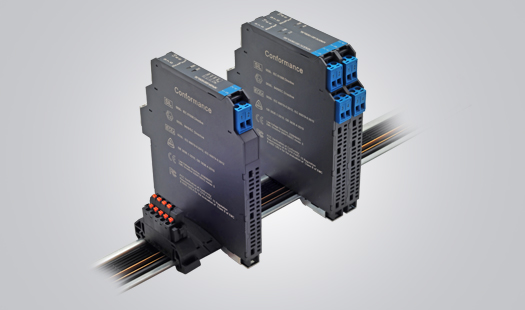

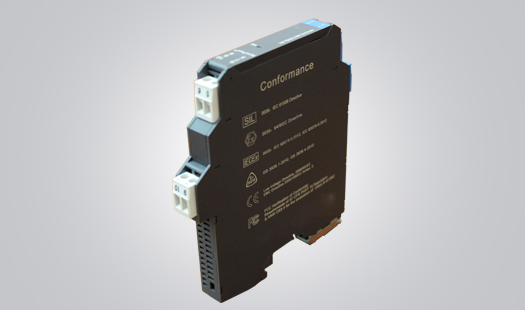

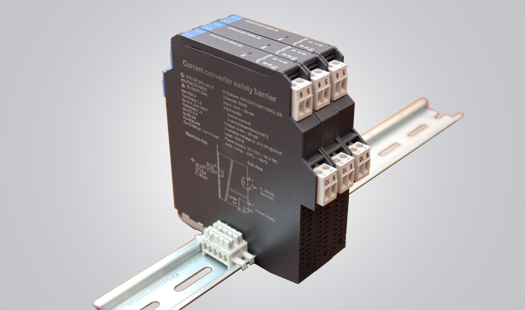

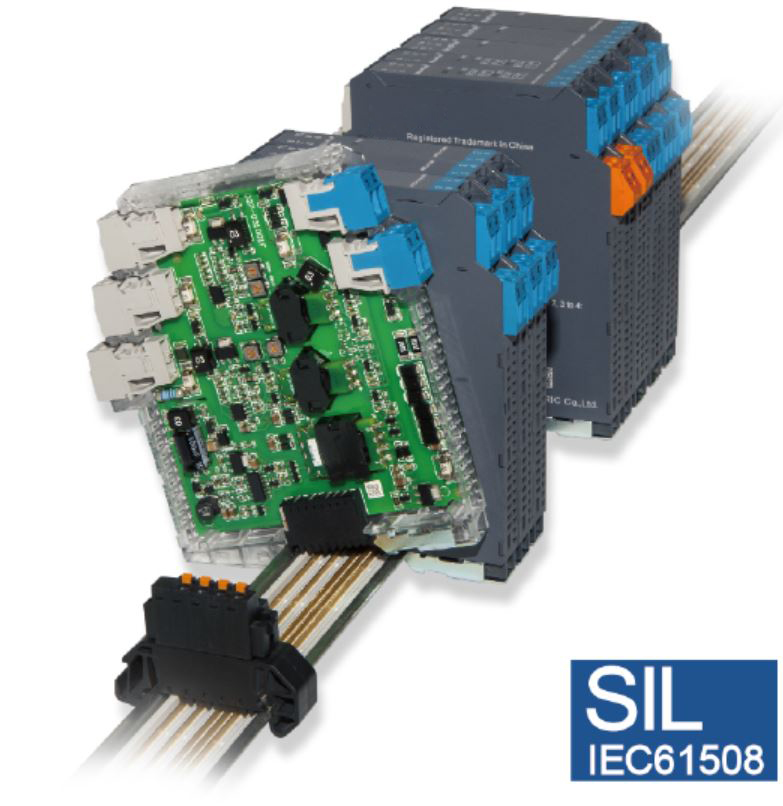

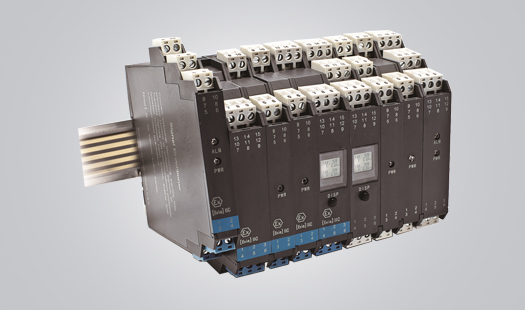

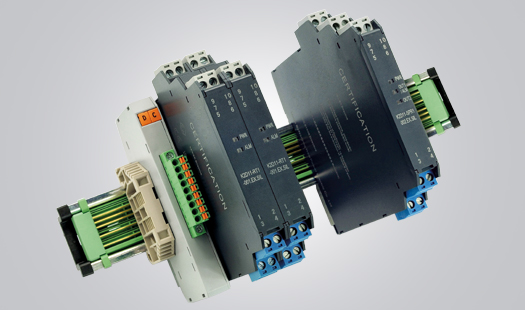

Intrinsically Safe Barrier - Isolation BarrierLeading the Advanced Technology in Explosion Proof Protection of Hazardous Areas
Major Models of NPEX Series intrinsic safety barriers have acquired certificates including:
SIL, ATEX, IECEx, CCS, CE, FCC
General Catalog of the Isolation Barrier
• Thermocouple • Thermal Resistance • Current Input • Current Output • Digital Input
• Digital Output • Vibration • Communication • Frequency • Voltage Input
For more details, please kindly download the datasheet of the Intrinsic Safety Barrier.
Feel free emailing us your demand by email. (info@tosilon.com; yanding@tosilon.com)
For reference, the followings are the general technical parameters for Analog Input Type Isolated Safety Barrier
Model: NPEXA-KM31
Input: 4~20mA
Output: 4~20mA
Description
This Isolated Safety Barrier detects loop current and converts it from a hazardous area into current or voltage signals to a safe area by isolation and provides transmitter with power in the hazardous area. It allows transmission of HART communication signals. The input, output and power supply are galvanically isolated from each other
Parameters
Wiring Diagram
Explosive-Proof Parameters
Feel free emailing us your demand by email. (info@tosilon.com; yanding@tosilon.com)
For reference, the followings are the general technical parameters for Analog Input Type Isolated Safety Barrier
Model: NPEXA-KM31
Input: 4~20mA
Output: 4~20mA
Description
This Isolated Safety Barrier detects loop current and converts it from a hazardous area into current or voltage signals to a safe area by isolation and provides transmitter with power in the hazardous area. It allows transmission of HART communication signals. The input, output and power supply are galvanically isolated from each other
Parameters
| Power Supply | 20V DC~30V DC (Reverse Power Protection) | |
| Power Dissipation | ≤ 1.2W | |
| Input Signal | 4~20mA, HART | |
| Input Resistance | ≤ 120Ω | |
| Available Voltage | Open-Circuit Voltage | ≤ 26V |
| Voltage | ≥ 16V @ 20mA | |
| Output Signal | 4~20mA, HART | |
| Load Resistance | RL≤ 350Ω | |
| Accuracy | 0.1% F.S | |
| Temperature Drift | 50 ppm/oC | |
| Response Time | ≤ 20 ms | |
| Electromagnetic Compatibility | IEC 61326-3-1 | |
| Dielectric Strength | ≥2500VAC (Intrinsically Safe Side / Non-Intrinsically Safe Side) | |
| ≥1500VAC (Non-Intrinsically Safe Side / Non-Intrinsically Safe Side) | ||
| Insulation Resistance | ≥100MΩ (Input / Output / Power Supply) | |
| Operation Temperature | -20~60 oC | |
| Storage Temperature | -40~80 oC | |

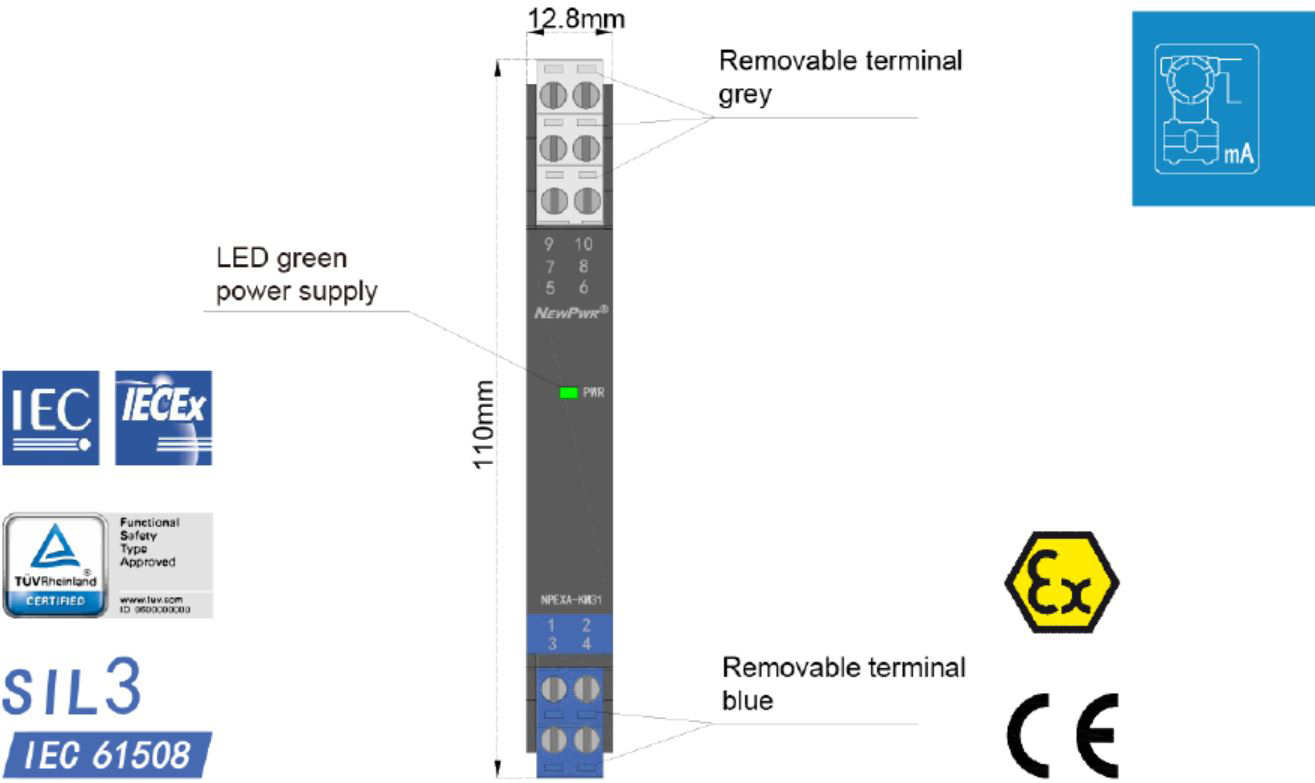

| Dimension (mm) | 12.8 (W) * 110 (H) * 117 (D) | |
| Output States | The output signal is less than 3.6 mA or greater than 21.5 mA | |

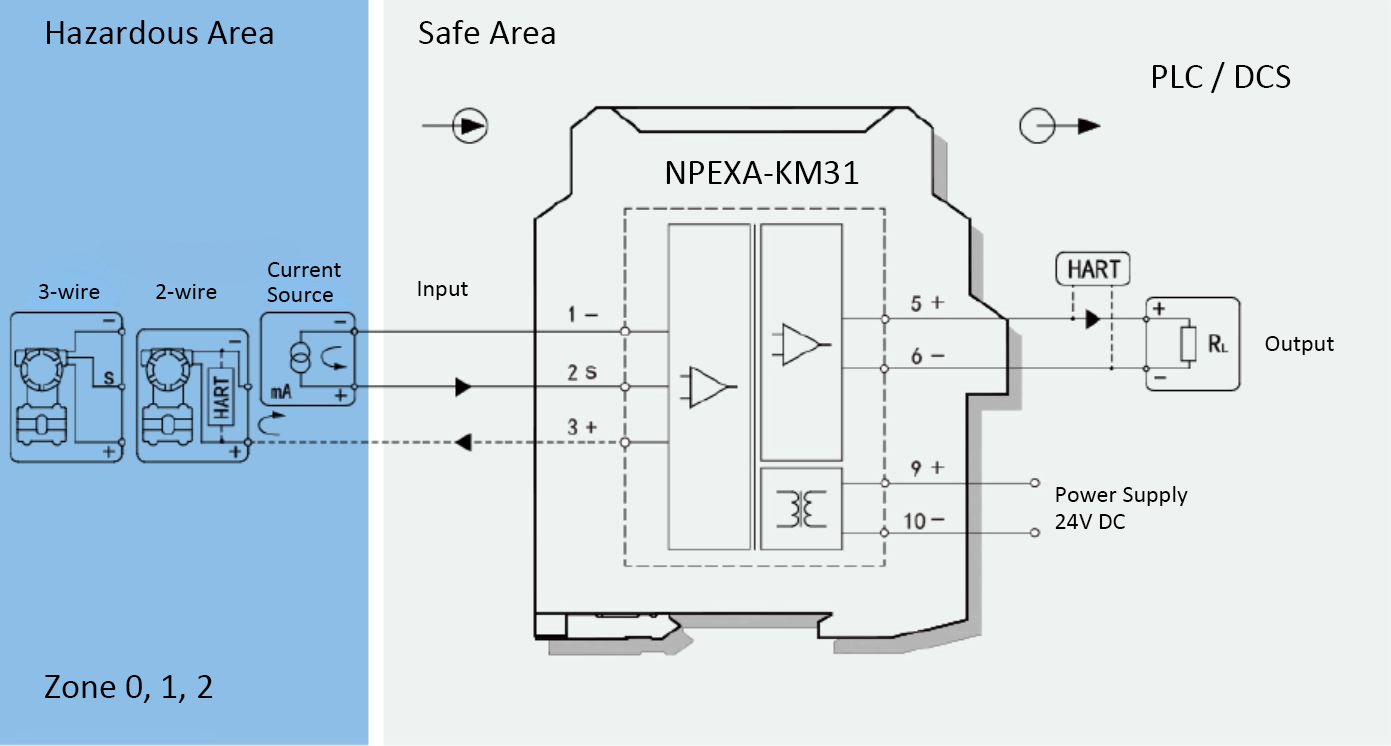

Wiring Diagram
Explosive-Proof Parameters
Germany TÜV (TÜV Rheinland)
Functional Safety Level (SIL): SIL3, SC3 according to IEC 61508
| Ex-Marking | EU:   II (1) G [Ex ia Ga] IIC |
|||
| IECEx: [Ex ia Ga] IIC | ||||
| Um: 250V | ||||
| Certified Parameters (Terminals 1, 2) | ||||
| Uo=5 V | Io=0.8 mA | Po=1 mW | ||
| IIC | Co= 99.9 μF | Lo=1 H | ||
| IIB | Co= 999 μF | Lo=1 H | ||
| IIA | Co= 999 μF | Lo=1 H | ||
| Certified Parameters (Terminals 2, 3) | ||||
| Uo=28 V | Io=93 mA | Po=651 mW | ||
| IIC | Co= 0.083 μF | Lo=4.2 mH | ||
| IIB | Co= 0.65 μF | Lo=12.6 mH | ||
| IIA | Co= 2.15 μF | Lo=33.6 mH | ||
