Universal Pressure Sensors
Economical Solution for General Pressure Monitoring- Overview
- Brief Tech-Parameter

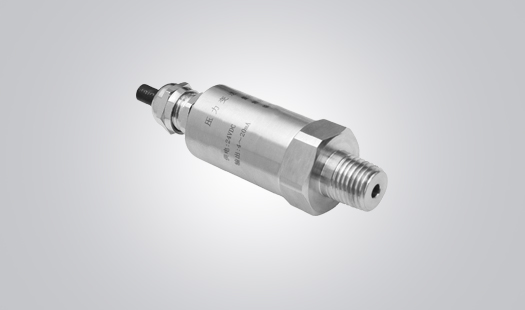

Tosilon TPZ series Pressure Transmitter is especially designed for the application of Compressor, Automobile, Air Conditioner, etc. The pressure cores and the chip are imported from E+H. Equipped with the advanced production lines and supported by the advanced technology of adjustment and digital compensation, TPZ series Transmitter has acquired RoHS and CE certificate.
•Full stainless steel construction;
•Pressure Buffer Connector;
•Electric connection optional;
•Pressure connection optional;
•Ceramic core and cell imported from German;
•CE & RoHS Approved
Typical Model: TPZ1200
| Parameter | Value | Note | ||
| Measurement range | 0~2bar.....600bar | 1bar=100kpa | ||
| Overload pressure | 1.5 * pressure range | |||
| Broken pressure | 3 * pressure range | |||
| Accuracy | ±0.5%F.S ±1%F.S | |||
| Stability | Typical 0.5% F.S, maximum: 1 %F.S | |||
| Operating temperature | -40~100 (Deg. C) | |||
| Compensation temperature | -10~80 (Deg. C) | |||
| Medium compatibility | Corrosive medium compatible with 1Cr18Ni9Ti,Ceramic | |||
| Wires | Two-wire | Three-wire | ||
| Output signal | 4~20mA | 0.5-4.5V | ||
| Supply voltage | 10~30Vdc | 5Vdc | 10-30Vdc | |
| Load resistance | (U-10)/0.02(Ω) | >100KΩ | ||
| Insulation | >100M Ω@50V | |||
| Electrical connection | DIN43650A/C, Packard,M12 Seial, Cable | |||
| Shell/Wire protection | IP67 | |||
| Pressure form | Gauge G, Absolute A | |||
| Pressure port | G1/2 G1/4 NPT1/4 M20×1.5 7/16-20UNF | |||
| Response time | 10ms | |||
| Certification | CE,Intrinsic-safety explosion E, Isolated explosion-proof D | |||
| EMC | EMI:EN50081-1/-2, EMS:EN50082-2 | |||
